Billabong Pro Tahiti 2011 Sat AUG 27

29.10.10

Initial failure of trim cable from FX-HO 2010model

This ski came to shop for 1st service as 11hr. I found trim sys had too much free play.

See this video as how much this trim has free play.

I found cable came off from linkage.

Removed linkage assy. Yellow line is correct but cable was looks like came off from linkage.

Cable didn't through to cable guid.

Cable won't come off without pull out guid. In short this is initial failure from factory.
Correct fitting of cables. So now trim sys working well.


27.10.10

Ski rope stuck to drive shaft !

This cusutomer sucked ski rope when he ride.
He tried to remove rope at the beach but he couldn't remove completely.
This case rope get into a tube of jet pump duct which point of drive shaft through to inside of engine room.
It was so hard to pull off that melted rope from tube.






22.10.10

PC Doctor, 2

My Desk top machine assembling was completed.

Memory, G skill 2*4G  Looks cool!
Extra case fan with LED

Finally memory fitted beside of CPU cooler.

Completed!

Switch ON !! Looks cool!

It goes like this when dim a light of room. This is for just self-complacent,,,,,,
Install Windows7 64bit

Install are done completely, ready to use,,,,

19.10.10

PC Doctor

I started new business which PC Doctor,,,,,?
No, just joke mate.
I bought PC parts and just started to make a new desk top machine with Windows7.
It' s another good fun to make a PC. I love make it something since I was kids, such as plastic model, RC car.
However I do not well to oprate PC. (shame,,,)

Parts of PC.
Case, Power, M/board, CPU, Memory,HDD,DVD,Card reader

ASUS Motherboard

Intel CPU

Dual Core i5

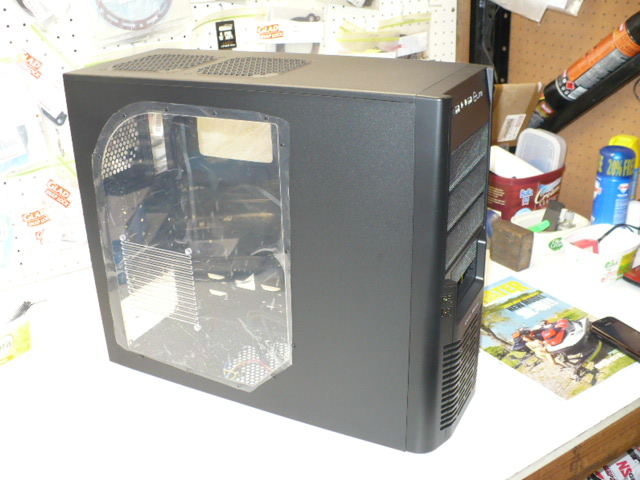

Cooler Master Case
Before fitting parts

Now assembling parts.

HDD and SSD
SSD is new-generation storage memory on behalf of HDD. SSD
is mach more firster than HDD and no mechanical move as like a big memory stick but only problem is very expensive.
.

SSD is also small and thin.

I'm looking forward to see how first this SSD.

18.10.10

Ryan Hipwood come to shop


Famous Big wave surfer Ryan Hipwood come to shop for service his Jet ski.
Let's have a look his awesome surfing



14.10.10

Japanese Jet ski magazine Oct issue

This month cover girl,,,cute,,,

Otsuka san who are Japanese X-2 Freestyler. No Hand Back PYON PYON (JUMP) is his favorite trick
Ai Kobayashi who are JJSF pro rider, she got JJSF 2010 Woman Ski Class title.
Her machine constructor is my friend Hideki Goto as TECH510.
Congratulations! Ai and Hideki

12.10.10

Broken throttle cable Yamaha XL700

This ski came to shop for service. I found damaged throttle cable when grease up to cable. Throttle moving was not too bad. However this may cause stick a cable and won't close throttle. Better to replace before accident happen.

Cable was broken locate just under the carby intake tube bacause easy to overlook of problem.

Outer tube of cable was broken.

10.10.10

Rainy day again!

It's 10/10/10 looking good of date today,

However,another rainy day here is Gold Coast.
This is worst weather of Sep and Oct since I came to Australia from 1997.
I miss sunny day,,,,

9.10.10

Awesome !

What't going on Gold Coast's weather,,,,,
We need rain for summer but too much!
last 4weeks too much rain and no sunny weekend.

By the way,
http://www.grindtv.com/weekly/#54449
This Weekly Grind tv is awesome.
This week's mountain bike competition is sick!
Let's have look.

I hope sunny day tomorrow.

8.10.10

Service and inspection of Yamaha FX-140, 2

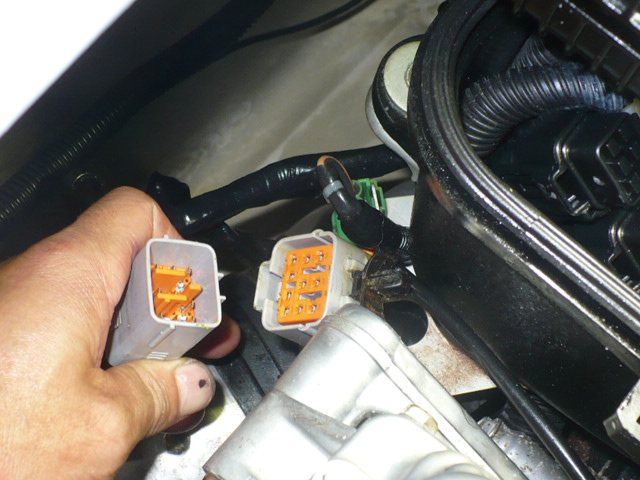

This is show coupler from Camshaft position sensor to connect main wire harness. This camshaft p sensor send signal to ECU(main computer) for positioning of camshaft but this sensor also radiate noise and that may cause to ECU pick up this noise as engine running problem.

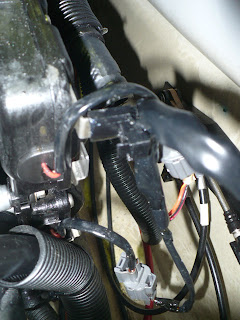

This is filter for stop noise from camposition sensor, from year 2003 model this parts fitted from factory but only 2002model need to buy and fit to between sensor to main harness. So this ski was not fit yet because fitted on this job.
If your ski is yaer 2002model must need check this.

This is exhaust joint rubber hose between end of exhaust to water box.

This rubber need to replace when rubber damaged. This may cause to leak exhaust gas and loose power.

Also we check more with full inspection show below.

Throttle bodys work and conditions check and lub

Electoric box conditions check and lub


Lead coupler conditions check and lub all coupler.



Drive coupling and damper conditions check


Bilge strainer conditions check and clean.

EL builge conditions check and clean

 Impeller and jet pump conditions check.

If your ski getting old or every 50hrs use we recommend inspection for avoid big damage and safe drive.



7.10.10

Service and inspection of Yamaha FX-140

FX-140 2002 model
This ski been used just 110hr but 8 years old. This time Doctor recommend to customer to service and inspection because can`t check problem only service. Ski had some problem, let have a look.

Oil level was too high. Check after engine keep  run 5min idling.
Thermostat was damaged by corrosion.
This is one of important inspection.

Thermostat was not work well.This may cause over heat of head cylinder.

Air filter was dirty.

Top new, bottom Original

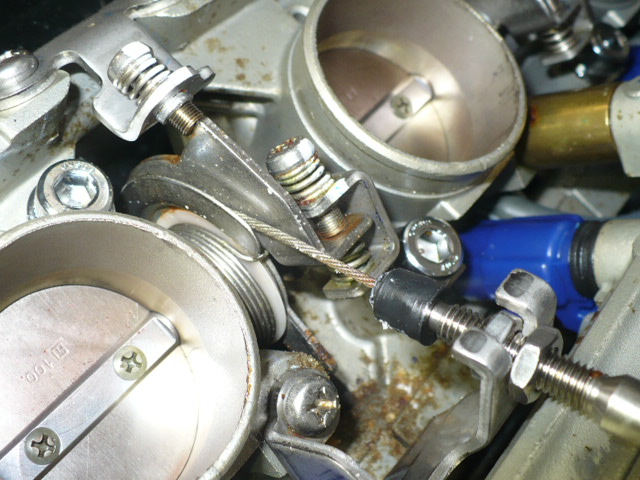

Throttle body
Throttle cable never put grease last 8 years

Steering cable never put grease too

Reverse cable never put grease too.

This ski had service at other shop last 8 years but never lub to cables, Unbelievable!

to be continued
